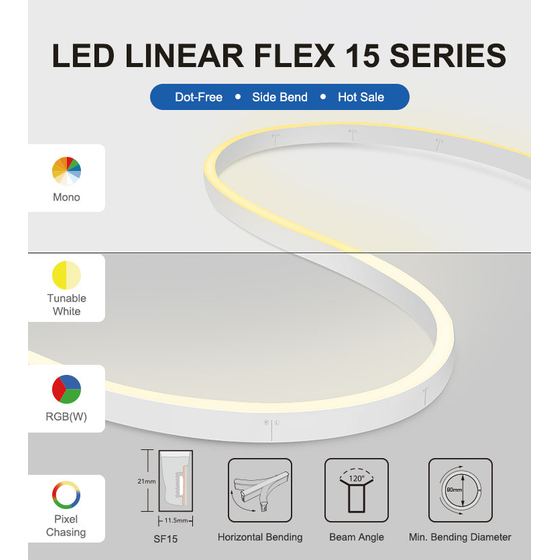

IP68 Pool, Hot Spring, Outdoor SF15 Linear Flex Light Monochrome
SF15-24V-5050-60-2200K-6500K
SF15 Monochrome Silicone LED Linear Flex Side Emission PWM Dimming/0-10V Dimming/DALI Dimming/DMX512 (via Decoder)
Bright, can be bent at 60R, and we offer 14 colors in the single-color series. We have RGB and RGBW options, and the color temperature of W can be custom-made. With a single-side input, it can be installed up to 10m, and it supports dimming, making it suitable for outdoor use, spas, and pools. The surface treatment is smooth, making it resistant to dirt, and it has excellent weather resistance, as well as resistance to solvents, seawater, and chemicals, with an IP68 protection rating allowing for use at depths of up to 2m. Waterproof treatment is provided with a sealing plug to prevent moisture ingress from the wiring connection. Additionally, high-density injection-molded connectors are used. The LED substrate has high twisting and bending characteristics, and the thicker circuit design prevents voltage drop. Using medical-grade gas-phase silicone, the tube is strong, transparent, and has a high UV rating. Cable processing for terminals can also be customized, with options for installation clips and rails based on the situation. It supports 0-10V, PWM, and DALI dimming, and DMX control is possible via a DMX decoder.
Inquire About This Product
basic information
SF15 Monochrome LED Linear Flex SF15 Series Applications: Hotels, homes, offices, gardens, buildings, pools, water features, super sento, hot springs Exterior: Silicone (PVC option available for outdoor use) Input Voltage (v): DC 24V Power Consumption: 12W/m Number of LEDs: 60 LEDs/m Cutting Unit: 6 LEDs Cutting Length Unit: 80 mm Minimum Bending Diameter: 80 mm LED: Epistar SMD LED 5050 Maximum Operating Distance: Single-side input 10M, Double-side input 20M Beam Angle: 120° Luminous Flux Maintenance: 70,000 Hours L70 @ 25°C, 50,000 Hours L70 @ 50°C Installation: 0°C to 50°C Operating Temperature: -40°C to 55°C Lifespan (hours): 50,000 IP Protection Rating: IP68 for wet environments and underwater up to 2m
Price information
L=5m Both ends IP68 waterproof treatment
Price range
P2
Delivery Time
P4
※2-3 weeks
Applications/Examples of results
Hotel, home, office, garden, building, pool, water basin, super sento, hot spring Exterior: silicone (PVC option available for outdoor use)
Detailed information
-
IP68 waterproof
-
Bend to the left and right relative to the light-emitting surface.
-
Delivery by factory processing.
-
An example of processing
-
Use in water
-
Sign
-
Sign
-
Vessel
-
Mount clip
