IR Image Furnace [Custom Case] Installation of IR Image Furnace onto Universal Testing Machine
Smartly attached to the test device. A high-performance IR imaging furnace equipped with heating, atmosphere control, and evacuation mechanisms.

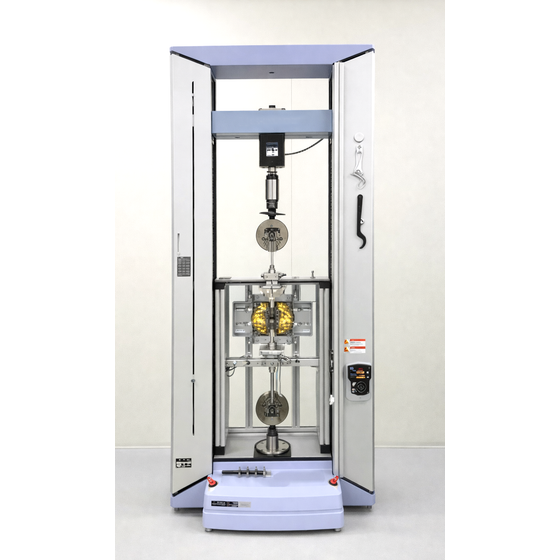

System Products - The Challenge to the Unknown World Begins - We maximize the know-how of high-temperature systems to pursue infinite possibilities. We will provide various solutions to meet the needs of the times. Please feel free to inquire about custom systems. 【Installation of IR Image Furnace onto Universal Testing Machine】 It can be installed on an existing universal testing machine, allowing for testing while heating the sample. The heating section is isolated by a quartz chamber, enabling control of the atmosphere during testing. The heating device and quartz chamber have a mechanism that allows them to slide up and down, making sample replacement easy. A moving rail for the heating device is provided at the back of the testing machine, allowing it to be retracted to the back of the machine when not in use.
Inquire About This Product
basic information
This is a case study of the introduction of an IR imaging furnace. For more details, please contact us.
Price range
Delivery Time
Applications/Examples of results
Heating tests can be performed with a universal testing machine. Atmosphere control is achieved with a quartz chamber, and the heating section can be exchanged by sliding and retracted to the back.
