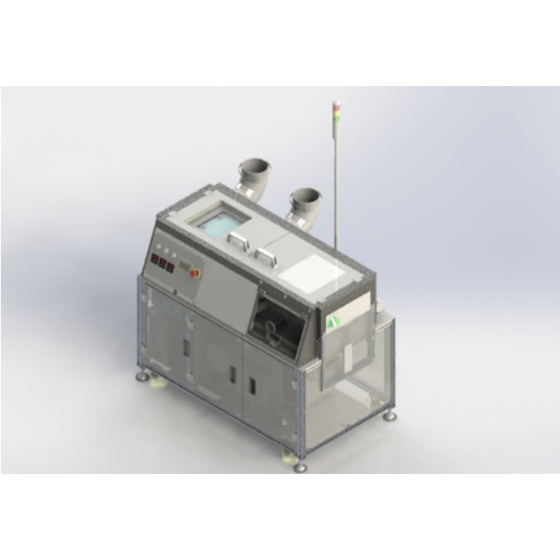

Hot air drying while waiting on the conveyor line.
◎ "Efficient Hot Air Drying" and "Three-Board Waiting Mechanism" - Equipped with a hot air generator that produces 60°C air: The internal atmosphere temperature of the device is raised to 60°C, significantly reducing the drying time of substrates during transport and waiting. It efficiently dries liquids and moisture after coating or cleaning. - Three-drive mechanism allows for waiting of up to three boards: With an independent three-drive mechanism, up to three substrates can be simultaneously held in the conveyor without stopping the flow of the line, forming an efficient buffer within the device. ◎ "Timer Management" and "Flexible Size Compatibility" - Control drying time freely with a waiting timer: The waiting time for each substrate can be individually set with a timer. It allows for precise management of optimal drying cycles according to the type and amount of liquid applied. - Compatible with sizes from M to XL: In addition to standard M-sized substrates, it can flexibly accommodate the transport and drying of large XL-sized substrates with options. It can adapt to future product size changes without the need to replace equipment.
Inquire About This Product
basic information
【Features】 - Equipped with a hot air generator. Increases the internal temperature of the device, reducing the drying time for substrates in standby. - Capable of holding up to three substrates in standby with three internal conveyor drives. - Standby timer allows for setting the substrate standby time. - Internal temperature of the device is 60 degrees (ambient temperature). Substrate transport direction: Right → Left (Left → Right) Substrate transport reference: Front side (Rear side) Substrate transport height: 900 +50 -25 (mm) Compatible substrate dimensions: W50～250mm * L70～330mm Substrate thickness: 0.5mm～2.0mm Conveyor length: M size 1300mm, XL size 1700mm Power supply: AC200V Air: 0.5MPa *XL size is also available *Please note that specifications and appearance may change without prior notice for improvement purposes.
Price range
Delivery Time
Applications/Examples of results
Mainly used in coating machine lines. There are many achievements with EMS (Electronic Manufacturing Services) companies and production departments of various equipment manufacturers.
Detailed information
-
Blueprint
Company information
At Komatsu Electronics Co., Ltd., the FA Division designs and develops various FA equipment by leveraging the operations and improvements at our own factory, along with a thorough accumulation of rationalization. We propose and provide appropriate systems tailored to our customers' needs. With a consistent system in place, we also support after-sales follow-up and modifications for process changes after delivery. Products shaped by the voices from the manufacturing site have received high praise.
