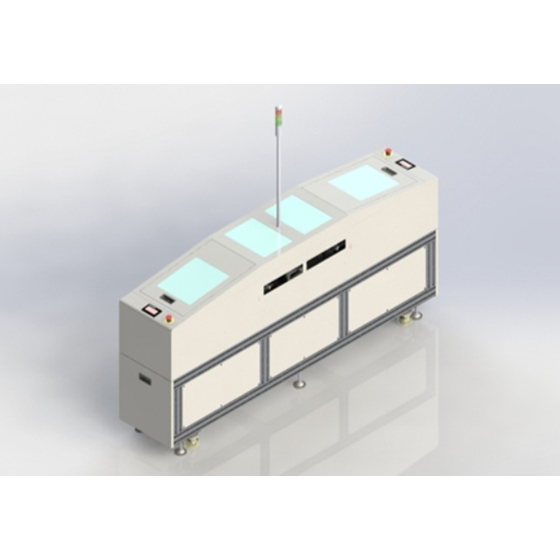

Absorb the differences in the standard rails and smoothly distribute to the dual lanes.
◎ "Dual Lane Support" and "Equipment Interconnection" - Connecting equipment with different reference rails and distances: Even if the positions of the reference rails and the distances between lanes differ between the front and rear devices, the conveyor side absorbs that gap and connects them smartly. A smooth dual lane (two-row transport) environment can be established even between existing equipment and devices from different manufacturers. - Standard support for automatic width adjustment of the conveyor: The conveyor is equipped with a width adjustment mechanism that matches the substrate size as standard. This automates and speeds up the setup change process, reducing the effort and time required by operators in multi-product production lines. ◎ "Arbitrary Position Setting" and "Automatic Setup Change" - Arbitrary setting of stop positions via touch panel: The stop position of the substrate can be intuitively and precisely specified and changed from the touch panel. Flexible transport control is possible, tailored to the timing of downstream processes and the picking position of robots. - Customization for automatic setup change is also possible: With options, it is possible to support "automatic setup change" linked to upper systems or recipe data. This physically eliminates human errors during product number changes and contributes to the non-stop operation of the production line.
Inquire About This Product
basic information
【Features】 - Dual lane support - Connects equipment with different reference rails and distances. - Arbitrary stop position setting - Arbitrary stop position setting via touch panel - Conveyor width automatically adjustable as standard - Capable of automatic height adjustment PCB transport direction: Right → Left (Left → Right) PCB transport reference: Front side (Back side) PCB transport height: 900 +50 -25 (mm) Supported PCB dimensions: W50～250mm * L70～330mm PCB thickness: 0.5～2.0mm Entrance/exit shutter: Available Power supply: AC200V Air: 0.5MPa *XL size is also supported *Please note that specifications and appearance may change without prior notice for improvement purposes.
Price range
Delivery Time
Applications/Examples of results
Used in various production lines such as implementation lines. There are many achievements with EMS (Electronic Manufacturing Services) companies and the production departments of various equipment manufacturers.
Detailed information
-
Blueprint
Company information
At Komatsu Electronics Co., Ltd., the FA Division designs and develops various FA equipment by leveraging the operations and improvements at our own factory, along with a thorough accumulation of rationalization. We propose and provide appropriate systems tailored to our customers' needs. With a consistent system in place, we also support after-sales follow-up and modifications for process changes after delivery. Products shaped by the voices from the manufacturing site have received high praise.
