Suppress the heat after reflow to ensure smooth inspection and handling in the next process.
◎ "Fan Cooling" and "Tact Keep" - Efficient cooling with upper fans: Air is blown from fans positioned above to quickly lower the temperature of the high-temperature substrates immediately after leaving the reflow oven, reducing inspection errors in the next process caused by heat and minimizing the risk of burns during operator handling. - Inline cooling that doesn't stop the flow: Continuous cooling processing is performed on the conveyor in sync with the discharge tact of the previous process. This prevents congestion on the line due to waiting for cooling and maintains overall productivity.
Inquire About This Product
basic information

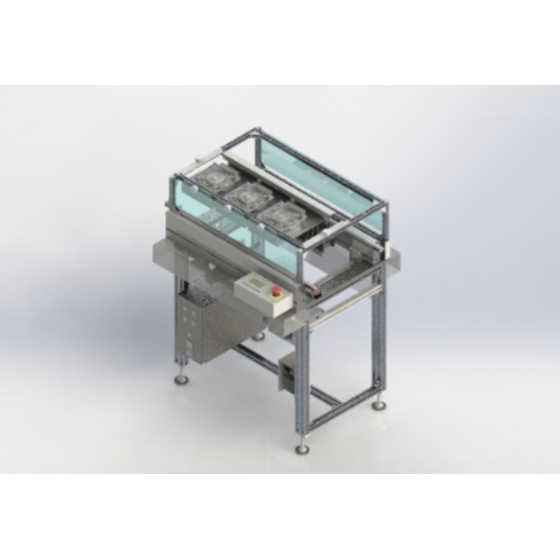

【Features】 - Cooling the circuit board with 3 fans on the top and 2 fans on the bottom - Adjustable air volume and angle - Top air direction 0° to 30° - Top air volume 0% to 100% - Adjustable conveyor speed 0 to 12 m/min Circuit board transport direction: Right to Left (Left to Right) Circuit board transport reference: Front side (Back side) Circuit board transport height: 900±25 (mm) Compatible circuit board dimensions: W50 to 390mm * L50 to 510mm Circuit board thickness: 0.5mm to 2.0mm Power supply: AC100V±10V (50/60Hz) Air: 0.5MPa *XL size is also available *Please note that specifications and appearance may change without notice for improvement purposes.
Price range
Delivery Time
Applications/Examples of results
Used in implementation lines, with many achievements in EMS (Electronic Manufacturing Services) companies and production departments of various equipment manufacturers.
Detailed information
-
Blueprint
Company information
At Komatsu Electronics Co., Ltd., the FA Division designs and develops various FA equipment by leveraging the operations and improvements at our own factory, along with a thorough accumulation of rationalization. We propose and provide appropriate systems tailored to our customers' needs. With a consistent system in place, we also support after-sales follow-up and modifications for process changes after delivery. Products shaped by the voices from the manufacturing site have received high praise.
