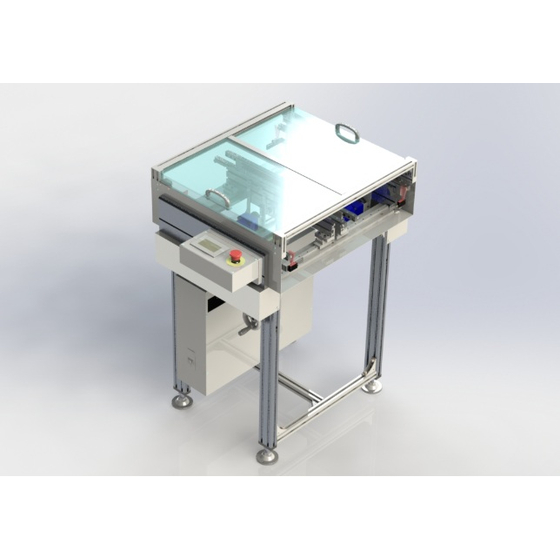

Without reducing the efficiency of double-column transport, it also supports XL boards with single operation.
■ Dual Lane and Flexible Adaptability - Supports dual lanes with two rows while allowing for specification of standard rail positions and distances according to the site. Additionally, by switching to single lane operation, it is also possible to transport XL-sized large circuit boards. ■ Automatic Width Adjustment and Safety Features - Equipped with an automatic conveyor width adjustment function and a dust-proof safety cover to protect circuit boards during transport as standard. Optional automatic stage change is also available, contributing to the efficiency of the production line.
Inquire About This Product
basic information
【Features】 - Dual lane compatible - Adjustable reference rail position and distance - Dust-proof safety cover - Standard equipment - Automatic width adjustment for conveyor width - Compatible with XL boards in single lane operation - Automatic stage change compatible Board transport direction: Right → Left (Left → Right) Board transport reference: Front side (Back side) Board transport height: 900+50-25 (mm) Compatible board dimensions: In dual lane: W50～250mm * L70～330mm In single lane: W50～460mm * L70～510mm Board thickness: 0.5～2.0mm Power supply: AC100V Air: Not used *Please note that specifications and appearance may change without prior notice for improvement purposes.
Price range
Delivery Time
Applications/Examples of results
Used in various production lines such as implementation lines. There are many achievements with EMS (Electronic Manufacturing Services) companies and the production departments of various equipment manufacturers.
Detailed information
-
Blueprint
Company information
At Komatsu Electronics Co., Ltd., the FA Division designs and develops various FA equipment by leveraging the operations and improvements at our own factory, along with a thorough accumulation of rationalization. We propose and provide appropriate systems tailored to our customers' needs. With a consistent system in place, we also support after-sales follow-up and modifications for process changes after delivery. Products shaped by the voices from the manufacturing site have received high praise.
